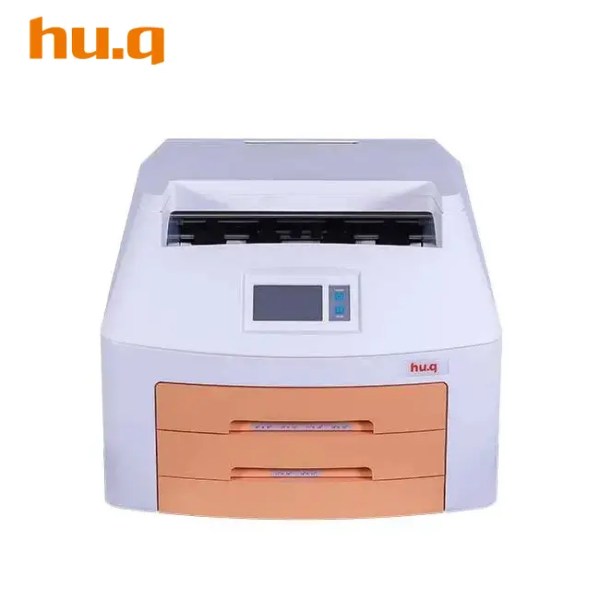

HQ-460DY Dry Imager
It is the one and only domestically engineered medical dry thermal imager. ย The HQ-DY series Dry Imager uses the latest direct dry thermal imaging technology which accommodates for a full range of applications, including CT, MR, DSA and US, as well as CR/DR applications for GenRad, Orthopaedics, Dental Imaging and more. The HQ-Series Dry Imager dedicates to precision in diagnosis with its outstanding image quality, and offers affordable imaging catering to your needs.
–ย Dry thermal technology
–ย Daylight load film cartridges
–ย Double tray, supports 4 film sizes
–ย Speed printing, higher efficiency
–ย Economical, stable, reliable
–ย Compact design, easy installation
–ย Straight forward operation, user-friendly
Usage
The HQ-DY series dry imager is a medical imaging output device. It is engineered to achieve its optimal performance when used with HQ-brand medical dry films. Different from the old method of film processors, our dry imager can be operated under daylight condition. With the elimination of chemical liquid, this thermal dry printing technology is significantly more environmentally friendly. However, to ensure the quality of output image, please keep away from heat source, direct sunlight, and acid and alkaline gas such as hydrogen sulfide, ammonia, sulfur dioxide, and formaldehyde, etc.
|
Specifications |
|
|
Print Technology |
Direct thermal (dry, daylight-load film) |
|
Spatial Resolution |
320dpi (12.6 pixels/mm) |
|
Grayscale Contrast Resolution |
14 bits |
|
Film Tray |
Two supply trays, 200-sheet capacityย total |
|
Film Sizes |
8โโร10โโ, 10โโร12โโ, 11โโร14โโ, 14โโร17โโ |
|
Applicable film |
Medical Dry Thermal Film (blue or clear base) |
|
Interface |
10/100/1000 Base-T Ethernet (RJ-45) |
|
Network Protocol |
Standard DICOM 3.0 connection |
|
Image Quality |
Automatic calibration using built-in densitometer |
|
Control Panel |
Touch Screen, Online Display, Alert, Fault and Active |
|
Power Supply |
100-240VAC ย 50/60Hzย ย 600W |
|
Weight |
50Kg |
|
Operating Temperature |
5โ-35โ |
|
Storage Humidity |
30%-95% |
|
Storage Temperature |
-22โ-50โ |

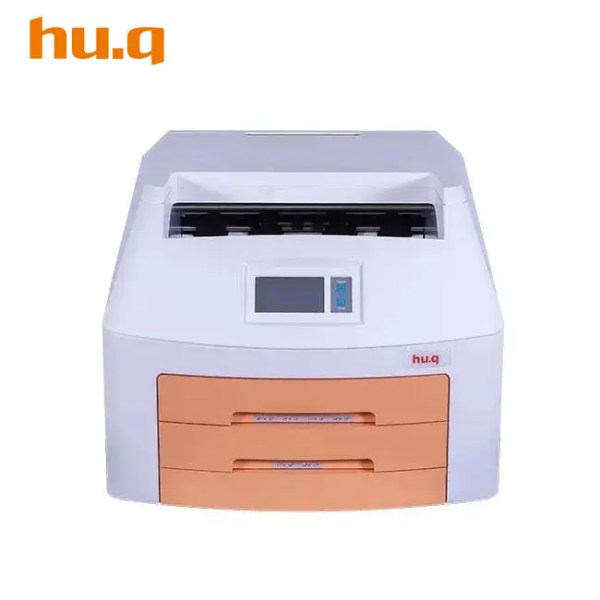

HQ-760DY Dry Imager
ย It is the one and only domestically engineered medical dry thermal imager. ย The HQ-DY series Dry Imager uses the latest direct dry thermal imaging technology which accommodates for a full range of applications, including CT, MR, DSA and US, as well as CR/DR applications for GenRad, Mammography, Orthopedics, Dental Imaging and more. The HQ-Series Dry Imager dedicates to precision in diagnosis with its outstanding image quality, and offers affordable imaging catering to your needs.
–ย Supports Mammography
–ย Dry thermal technology
–ย Daylight load film cartridges
–ย Double tray, supports 4 film sizes
–ย Speed printing, higher efficiency
–ย Economical, stable, reliable
–ย Compact design, easy installation
–ย Straight forward operation, user-friendly
Usage
The HQ-DY series dry imager is a medical imaging output device. It is engineered to achieve its optimal performance when used with HQ-brand medical dry films. Different from the old method of film processors, our dry imager can be operated under daylight condition. With the elimination of chemical liquid, this thermal dry printing technology is significantly more environmentally friendly. However, to ensure the quality of output image, please keep away from heat source, direct sunlight, and acid and alkaline gas such as hydrogen sulfide, ammonia, sulfur dioxide, and formaldehyde, etc.
|
Specifications |
|
|
Print Technology |
Direct thermal (dry, daylight-load film) |
|
Spatial Resolution |
508dpi (20pixels/mm) |
|
Grayscale Contrast Resolution |
14 bits |
|
Film Tray |
Two supply trays, 200-sheet capacityย total |
|
Film Sizes |
8โโร10โโ, 10โโร12โโ, 11โโร14โโ, 14โโร17โโ |
|
Applicable film |
Medical Dry Thermal Film (blue or clear base) |
|
Interface |
10/100/1000 Base-T Ethernet (RJ-45) |
|
Network Protocol |
Standard DICOM 3.0 connection |
|
Image Quality |
Automatic calibration using built-in densitometer |
|
Control Panel |
Touch Screen, Online Display, Alert, Fault and Active |
|
Power Supply |
100-240VAC ย 50/60Hzย ย 600W |
|
Weight |
50Kg |
|
Operating Temperature |
5โ-35โ |
|
Storage Humidity |
30%-95% |
|
Storage Temperature |
-22โ-50โ |

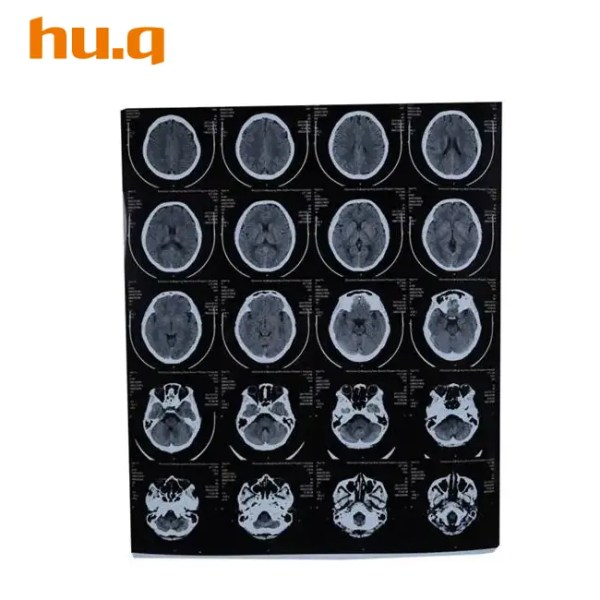

HQ-KX410 Medical Dry Film 8 x 10 in.(20 x 25 cm)
Comparing with the traditional wet film processing method, the HQ dry film offers easy-to-use daylight loading, and neither wet processing nor darkroom is needed. There will also be no chemical disposal issue, making it cost-effective and environmentally friendly. It possesses features such as outstanding grayscale and contrast, high resolution and high density, making it the new axis for digital radiography imaging. Our HQ dry film is compatible with HQ-DY series dry imager.
– No sensitive silver halide used
– Low fog, high resolution, high max density, bright tone
– Can be processed under room light
– Dry processing, hassle-free
Usage
This product is a printing consumable, and it is designed to be used with our HQ-DY series dry imagers. Different from traditional wet films, our dry film can be printed under daylight condition. With the elimination of chemical liquid used for film processing, this thermal dry printing technology is significantly more environmentally friendly. However, to ensure the quality of output image, please keep away from heat source, direct sunlight, and acid and alkaline gas such as hydrogen sulfide, ammonia, sulfur dioxide, and formaldehyde, etc.
Storage
– In dry, cool and dust-free environment.
– Avoid placing under direct sunlight.
– Keep away from heat source, and acid and alkaline gas such as hydrogen sulfide, ammonia, sulfur dioxide, and formaldehyde, etc.
– Temperature: 10 to 23โ.
– Relative humidity: 30 to 65% RH.
– Store in upright position to avoid adverse effect from external pressure.
Packaging
| SIZE | PACKAGE |
| 8 x 10 in.(20 x 25 cm) | 100 sheets/box, 5 boxes/carton |
HQ-KX410 Medical Dry Film 10 x 12 in.(25 x 30 cm)
Comparing with the traditional wet film processing method, the HQ dry film offers easy-to-use daylight loading, and neither wet processing nor darkroom is needed. There will also be no chemical disposal issue, making it cost-effective and environmentally friendly. It possesses features such as outstanding grayscale and contrast, high resolution and high density, making it the new axis for digital radiography imaging. Our HQ dry film is compatible with HQ-DY series dry imager.
– No sensitive silver halide used
– Low fog, high resolution, high max density, bright tone
– Can be processed under room light
– Dry processing, hassle-free
Usage
This product is a printing consumable, and it is designed to be used with our HQ-DY series dry imagers. Different from traditional wet films, our dry film can be printed under daylight condition. With the elimination of chemical liquid used for film processing, this thermal dry printing technology is significantly more environmentally friendly. However, to ensure the quality of output image, please keep away from heat source, direct sunlight, and acid and alkaline gas such as hydrogen sulfide, ammonia, sulfur dioxide, and formaldehyde, etc.
Storage
– In dry, cool and dust-free environment.
– Avoid placing under direct sunlight.
– Keep away from heat source, and acid and alkaline gas such as hydrogen sulfide, ammonia, sulfur dioxide, and formaldehyde, etc.
– Temperature: 10 to 23โ.
– Relative humidity: 30 to 65% RH.
– Store in upright position to avoid adverse effect from external pressure.
Packaging
| SIZE | PACKAGE |
| 10 x 12 in.(25 x 30 cm) | 100 sheets/box, 5 boxes/carton |
HQ-KX410 Medical Dry Film 11 x 14 in.(28 x 35 cm)
Comparing with the traditional wet film processing method, the HQ dry film offers easy-to-use daylight loading, and neither wet processing nor darkroom is needed. There will also be no chemical disposal issue, making it cost-effective and environmentally friendly. It possesses features such as outstanding grayscale and contrast, high resolution and high density, making it the new axis for digital radiography imaging. Our HQ dry film is compatible with HQ-DY series dry imager.
– No sensitive silver halide used
– Low fog, high resolution, high max density, bright tone
– Can be processed under room light
– Dry processing, hassle-free
Usage
This product is a printing consumable, and it is designed to be used with our HQ-DY series dry imagers. Different from traditional wet films, our dry film can be printed under daylight condition. With the elimination of chemical liquid used for film processing, this thermal dry printing technology is significantly more environmentally friendly. However, to ensure the quality of output image, please keep away from heat source, direct sunlight, and acid and alkaline gas such as hydrogen sulfide, ammonia, sulfur dioxide, and formaldehyde, etc.
Storage
– In dry, cool and dust-free environment.
– Avoid placing under direct sunlight.
– Keep away from heat source, and acid and alkaline gas such as hydrogen sulfide, ammonia, sulfur dioxide, and formaldehyde, etc.
– Temperature: 10 to 23โ.
– Relative humidity: 30 to 65% RH.
– Store in upright position to avoid adverse effect from external pressure.
Packaging
| SIZE | PACKAGE |
| 11 x 14 in.(28 x 35 cm) | 100 sheets/box, 5 boxes/carton |
HQ-KX410 Medical Dry Film 14 x 17 in.(35 x 43 cm)
Comparing with the traditional wet film processing method, the HQ dry film offers easy-to-use daylight loading, and neither wet processing nor darkroom is needed. There will also be no chemical disposal issue, making it cost-effective and environmentally friendly. It possesses features such as outstanding grayscale and contrast, high resolution and high density, making it the new axis for digital radiography imaging. Our HQ dry film is compatible with HQ-DY series dry imager.
– No sensitive silver halide used
– Low fog, high resolution, high max density, bright tone
– Can be processed under room light
– Dry processing, hassle-free
Usage
This product is a printing consumable, and it is designed to be used with our HQ-DY series dry imagers. Different from traditional wet films, our dry film can be printed under daylight condition. With the elimination of chemical liquid used for film processing, this thermal dry printing technology is significantly more environmentally friendly. However, to ensure the quality of output image, please keep away from heat source, direct sunlight, and acid and alkaline gas such as hydrogen sulfide, ammonia, sulfur dioxide, and formaldehyde, etc.
Storage
– In dry, cool and dust-free environment.
– Avoid placing under direct sunlight.
– Keep away from heat source, and acid and alkaline gas such as hydrogen sulfide, ammonia, sulfur dioxide, and formaldehyde, etc.
– Temperature: 10 to 23โ.
– Relative humidity: 30 to 65% RH.
– Store in upright position to avoid adverse effect from external pressure.
Packaging
| SIZE | PACKAGE |
| 14 x 17 in.(35 x 43 cm) | 100 sheets/box, 5 boxes/carton |
